Products Description

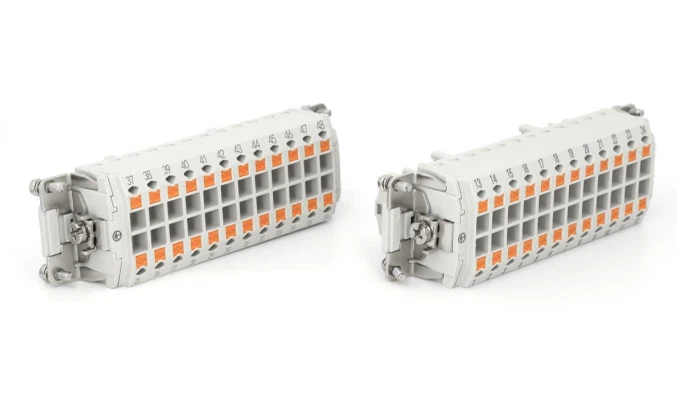

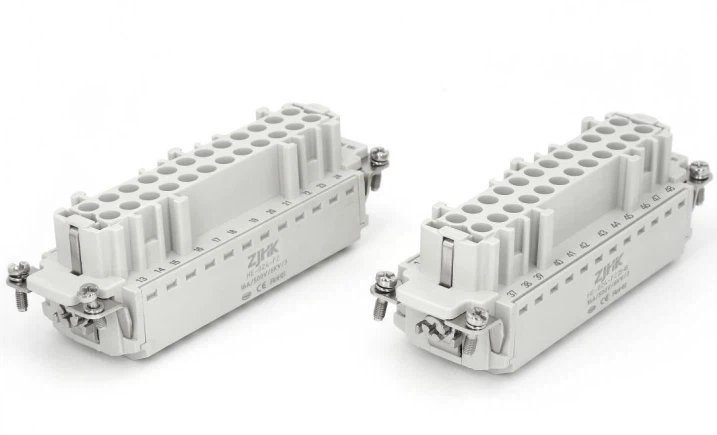

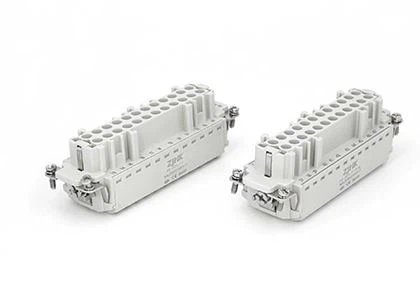

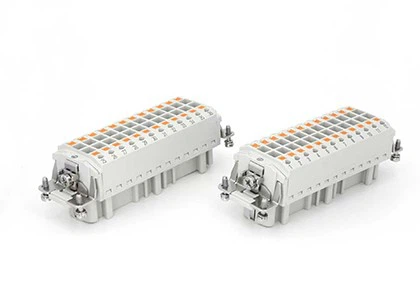

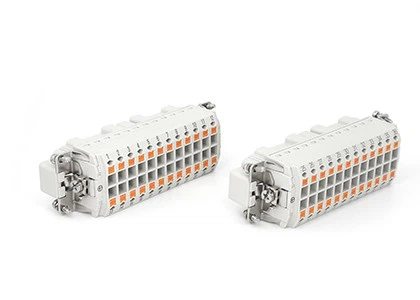

HE-048-FZ
With an ashen appearance and polycarbonate material, the HE-048-FZ excels in withstanding high temperatures and salt spray. Notably, its direct plug-in connection method positions it as the first choice for numerous projects with short lead times and harsh working conditions.
AFDD Arc Fault Protection Circuit Breaker
Specifications
DIN EN 60 664
Specifications
DIN EN 61 984
Termination method
Fast Lock
Gender
Male
Model
HE-024-FZ(1-24)
HE-024-FZ(25-48)
Rated Current
16Ampere
Rated Voltage
500Voltage
Rated Impulse Voltage
6kV
Pollution Degree
3
Rated Voltage Acc.to UL Csa
600V
Insulation Resistance
≥1010Ω
Material
polycarbonate
Limiting Temperature
-40℃...+125℃
Flammability Acc.to UL94
V0
Mechanical Working Life-mating Cycles
≥500
Contacts
Material
Copper Alloy
Contact Resistance
≤1mΩ
Crimping Connection
Wire Gauge
0.14-4.0mm²
AWG
26-12
Stripping Length
7.5mm
Products Description
The HE-048-FZ has a sleek ashen finish-hiding minor dust/wear for long-term industrial use and is made of high-grade polycarbonate, resisting impacts, scratches, and retaining structural integrity.
It excels in durability: withstanding -40°C to +125°C and passing salt spray tests, fitting coastal facilities, chemical plants, or outdoor equipment.
Fully certified with CE and UL, it meets EU and North American safety/EMC standards. It works with servo motors, frequency converters, industrial robots, and outdoor sensors.

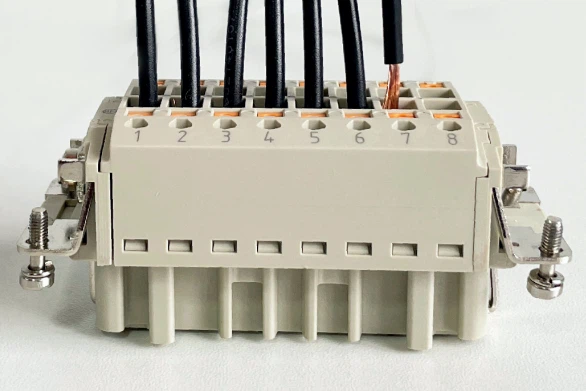

The heavy-duty, in-line connector eliminates the need for complex tools; simply insert the wire and the connection is complete. Single-strand rigid wires can be inserted directly into the wiring hole, where springs automatically clamp the wire. Multi-strand flexible wires require cold-pressed terminals. To remove the wires, simply press the release point with a screwdriver, making them highly efficient and suitable for batch wiring.
hoods and housings
Advanced, Professional
Warehouse and equipments
Choose the plan that suits you best.
Skyray Instrument
eDXRF Spectrometer
temperature testing bed
warehouse
application scenarios

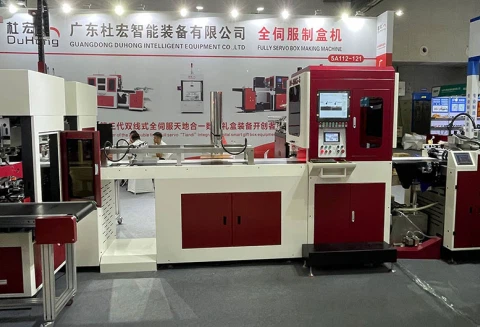

printing machines
As the core link in printing machine connection systems, heavy-duty connectors not only address the stability, efficiency, and compatibility issues of traditional wiring methods, but also become a key technology supporting the modularization, intelligence, and high-speed development of printing equipment. For printing equipment manufacturers, selecting suitable heavy-duty connectors can improve equipment reliability and market competitiveness. For end users, heavy-duty connectors can reduce equipment maintenance costs, improve production efficiency, and create greater economic benefits for enterprises.
Aviation
The engine is the aircraft's power source, and its control system is crucial to its proper operation and performance. Heavy-duty connectors connect engine sensors, actuators, and control units, transmitting various control signals and monitoring data. Engines operate at high temperatures and experience significant vibration. The high-temperature and vibration-resistant properties of heavy-duty connectors ensure reliable connections between engine control system components even in these harsh environments. This allows the control unit to accurately monitor engine status in real time and adjust control parameters promptly, ensuring efficient and stable engine operation.
Certifications
Create a comprehensive solution
UL
CE
UKCA
EAC
REACH
RoHS
Our address
No.166, Huapu Road, Wengyang Industrial Park.Yueqing City, Zhejiang Province, China 325600
Phone Number
+86 18067786591
nelsonzjhkele.com
Frequently Asked Questions
What protection ratings do your plug-in heavy-duty connectors typically have?
+
-
Most of our plug-in heavy-duty connectors have IP65, or even IP68 protection ratings, effectively resisting dust, water splashes, and oil pollution, suitable for harsh industrial environments.
Can these connectors be used for high-current applications?
+
-
Yes, they can. Our plug-in heavy-duty connectors support current ranges from 10A to 200A, meeting the power transmission needs of high-power industrial equipment like motors and inverters.
What wire gauges are compatible with your plug-in connectors?
+
-
They are compatible with a wide range of wire gauges, usually from 0.5mm² (20AWG) to 16mm² (6AWG), adapting to different wiring requirements in industrial scenarios.
Do you provide custom pin configurations for these connectors?
+
-
Absolutely. We offer custom pin configurations based on your specific application needs, ensuring a perfect match with your equipment.
What is the operating temperature range of these plug-in heavy-duty connectors?
+
-
The standard operating temperature range is -40°C to +125°C, which can withstand extreme temperature fluctuations in outdoor or industrial workshop environments.
