Details:

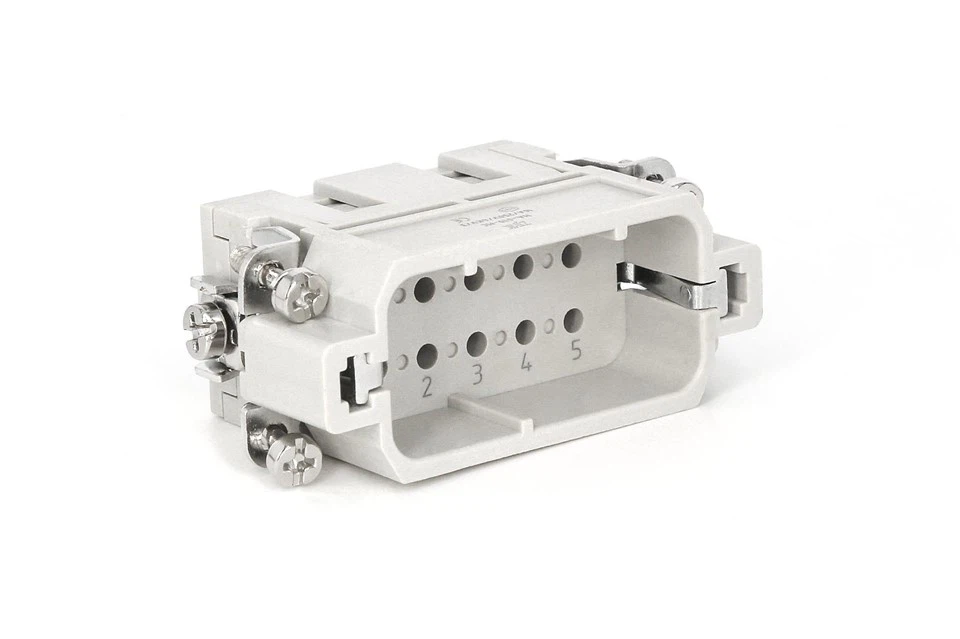

This is the HA series standard insert, which has 10 copper alloy pins. And because of its simple operation and single specification, it is widely used in various industries. This product can work in harsh environments and is a good choice for high-quality requirements.
The HA-010-MC is one of three cable installation options within the HA series. Utilizing a crimping terminal connection method, it offers superior resilience against harsh conditions-including intense vibration, shock, high temperatures, and corrosion-making it the optimal choice for demanding applications.
technical specification
Specifications
DIN EN 60 664/DIN EN 61 984
Number of contacts
10
Rated Current
16A
Rated Voltage
250V
Rated Impulse Voltage
4kV
Pollution Degree
3
Pollution Degree2 Also
16A 230/400V 4kV 2
Rated Voltage Acc.to UL Csa
600V
Insulation Resistance
≥1010Ω
Material
Polycarbonate
Limiting Temperature
-40℃...+125℃
Flammability Acc.to UL94
V0
Mechanical Working Life-mating Cycles
≥500
Contacts
Material
Copper Alloy
Surface
Hard-silver/Hard-gold Plated
Contact Resistance
≤1mΩ
Screw Terminal
Wire Gauge
0.14-4.0mm²
AWG
26-12
Product Material
Our die-cast aluminum housings provide superior protection against dirt, moisture, and mechanical stress. They ensure secure, quick assembly while significantly enhancing product resistance, durability, and waterproofness.
CURRENT CARRYING CAPACITY
The right table shows the variation of the operating current of HA-010 with the ambient temperature
OPERATING CURRENT
The right image illustrates the current rating specifications of our HA-010-M series. When compared with comparable models, the HA-010-M exhibits more conservative current ratings under equivalent operating conditions.
related product
Bottom of 10 pins series
As can be seen from the bottom, different hole positions can be distinguished by the numbers on the product, and the side is decorated with stainless steel.
Side of 10 pins series
From the top, different hole positions can be distinguished by the numbers on the product, matching male pins, and the internal locking structure fixes the pins.
Male & female inserts of HA-010-MC
The picture shows the matching male and female pins, both of which need to be used with additional crimp contacts and have strong stability.
The matching crimp contacts
silver plated 16A male contact
silver plated 16A female
gold plated 16A male contact
gold plated 16A female
Professional testing equipment
DC Temperature Rise Test
This test monitors conductor temperature under load to determine safe current capacity. As current increases, resistive heating causes temperature rise, reducing ampacity. The evaluation considers conductor size, ambient conditions, and thermal properties to establish safe operating limits and prevent overheating in electrical systems.
EDXRF Spectrometer is widely used for environmental protection testing, material analysis of plastic components, and measurement of copper/rust content. In environmental applications, it enables rapid and accurate detection of heavy metals (e.g., lead, cadmium, mercury) in soil, water, and air pollutants, ensuring effective environmental monitoring and compliance with safety regulations.
Heavy-duty connectors are widely used in rail transit, construction machinery, wind energy, robots, and so on
transportation railway
Heavy-duty connectors in rail transit offer a "one-time insertion, complete solution" by integrating power, control, networking, and braking systems into plug-and-play modules. They ensure high reliability for critical traction and signal systems while withstanding extreme conditions. This simplifies installation, enhances durability, and meets rigorous operational demands-all through a single, robust connection.
excavating machinery
Heavy-duty connectors are vital for construction machinery operating in harsh conditions like dust, vibration, and extreme temperatures. Their reliable electrical connections ensure stable performance in mining, roadwork, and infrastructure projects. With robust design and superior durability, these connectors support efficient and safe equipment operation, making them indispensable in the construction machinery industry.
Company Profile
HAOKE ELECTRIC Co., Ltd. engineers reliable and innovative connector solutions for global industries. With modern manufacturing capabilities and international certifications (UL, CQC, CE, UKCA, EAC), we partner with leading companies to provide customized, intelligent connection technologies that foster mutual growth.
130+
active members
83+
Export Countries
20+
Annually Exhibitions
13+
Years Experience
CERTIFICATIONS
UL
EAC
UKCA
CE
ISO9001
FAQs
01.How to order?
Please email us your purchase order and we will send you a quotation and a proforma invoice.
02.Does it support on-site assembly or modular plug-in?
Yes, our product is easy to install. Just unbutton it and it can be plugged in.We have frame such as HF6B,HF10B,HF16B,HF24B.
03.Can it be paid in installments or in full at one time?
Normally, our company requires 100% payment before shipment.
04.Is there any local inventory? What is the delivery date of the urgent order?
Yes, for most of the regular products, we have inventory.For urgent orders, we can generally complete the delivery within 7 days.
