PRODUCTS DESCRIPTION

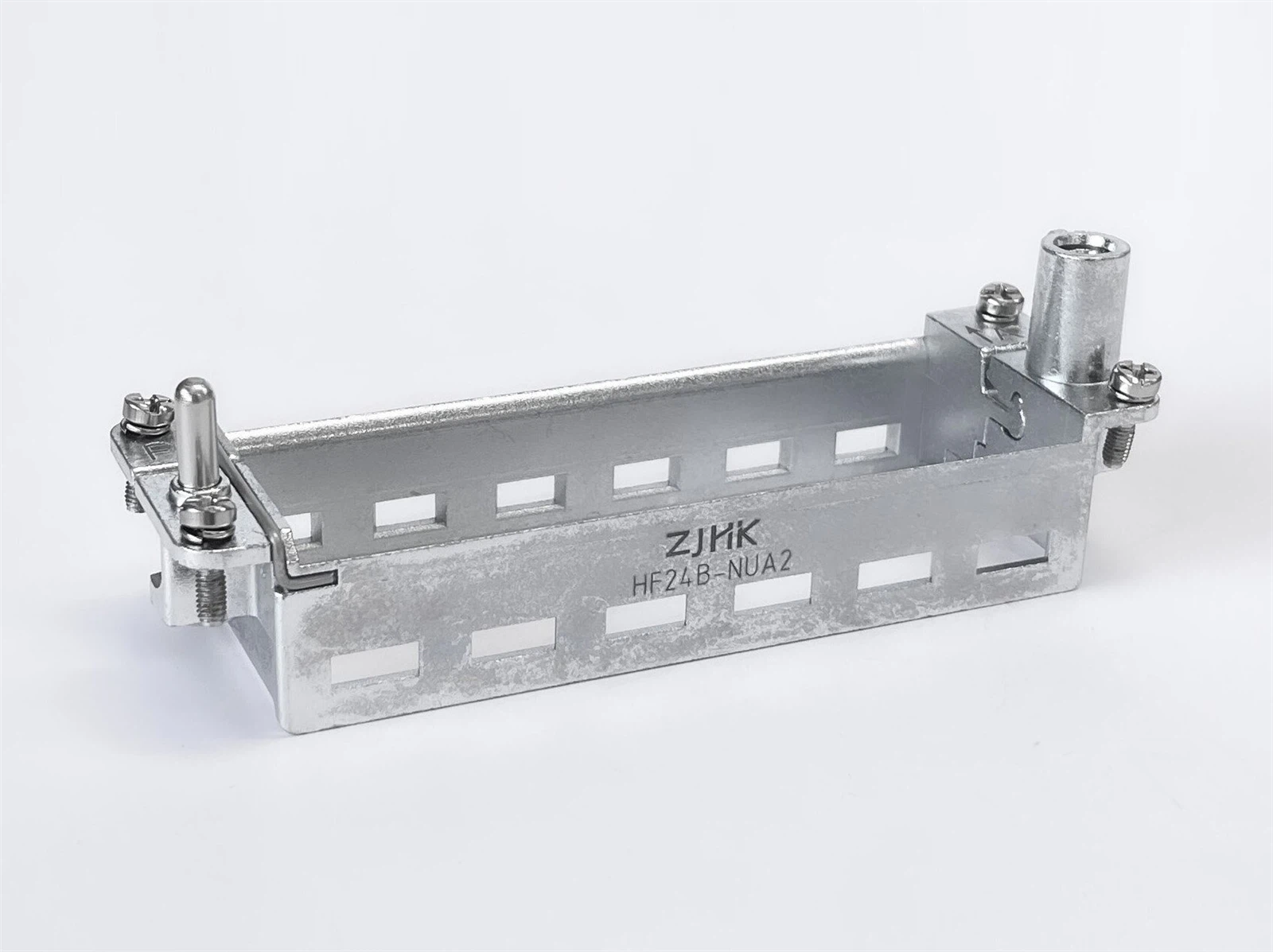

HF24B-NUA2
The HF24B series frame can accommodate up to 6 sigal-module positions, Freely combine multi-module inserts to achieve different functional combinations. Each side of the frame is marked with a distinct uppercase laser, facilitating quick and accurate distinction. The HF24B frame is based on the same installation space as the Harting and other standard connector brands. On the basis of ensuring stable quality, it offers a more competitive price, reducing the total cost of the connector by up to 30%, while maintaining excellent vibration damping performance and a 500-connection life.
INNOVATIVE PRODUCT
1st Generation "upercase" Frame

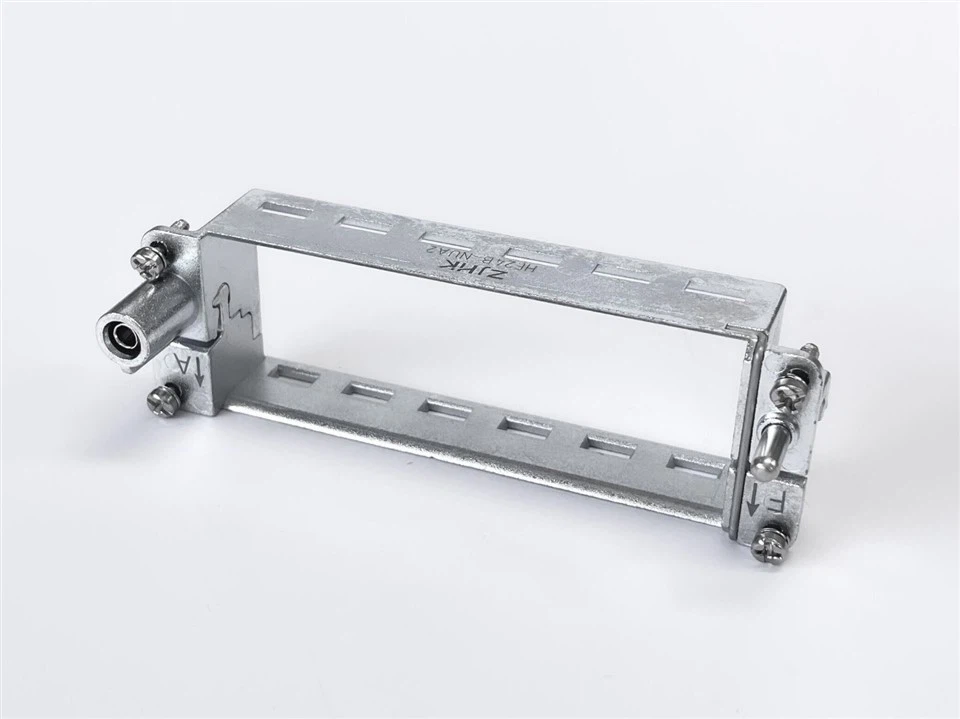

The first-generation frame employs a robust, die-cast lower structure with seamless end connections for superior stability. Installation is simplified: loosen side screws, insert modules, and retighten. It supports mainstream interfaces, features clear polarity markings, and uses base-mounted screws for secure, reliable connections.
Upgraded Structure
The updated second-generation frame features a dual-side detachable design, ensuring easy module installation and secure screw fastening. Its left-right separation prevents insert dislodgment, improving work efficiency and operational convenience, making it the preferred choice for most customers.
Rear layout

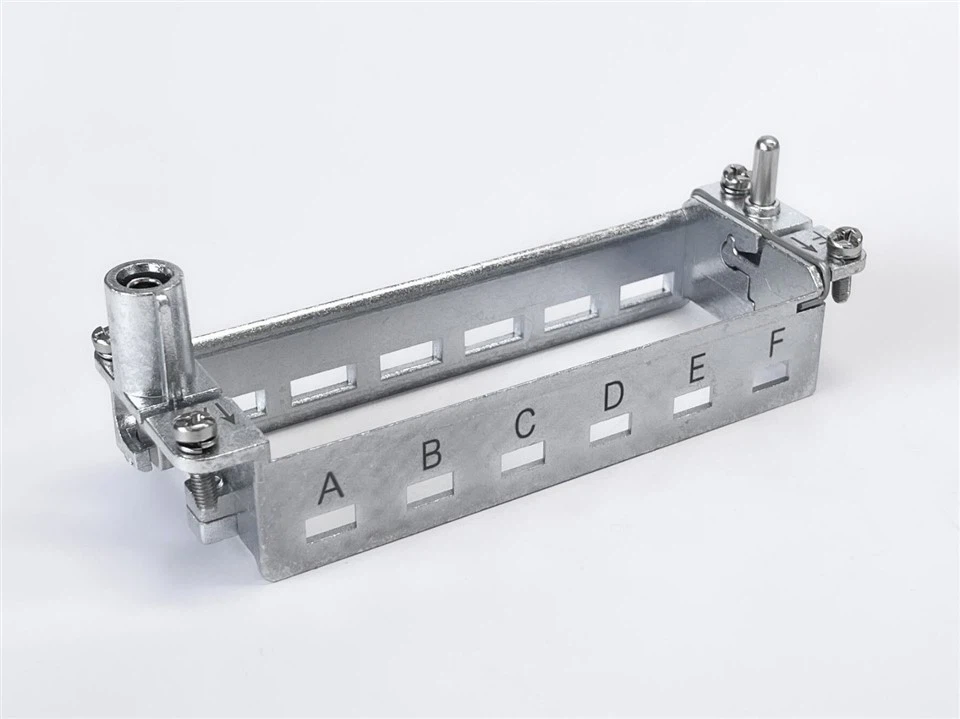

The image shows the rear structure of the product, composed of six sequential uppercase letters to distinguish different insert positions. Depending on your choice, either male or female inserts can be placed. The left-right structure facilitates easy assembly and disassembly.
PROFESSIONAL FACILITIES AND WAREHOUSE
Warehouse
At the heart of our operations lies a vertically integrated business model, incorporating both a dedicated warehouse and an in-house manufacturing plant for heavy duty connectors. By maintaining extensive component inventories and leveraging profound production expertise, we efficiently deliver both standard and fully customized connector designs. This synergy of ready availability and flexible production not only enables the creation of tailored solutions but also reinforces a resilient and highly responsive supply chain, ensuring reliability and rapid adaptation to client requirements.
DC Temperature Rise Test
This test evaluates conductor temperature increase under specified DC load to determine its safe current-carrying capacity (ampacity). As current flows, resistive heating raises temperature, which can degrade insulation and reduce ampacity. The assessment considers conductor size, material, ambient conditions, and thermal dissipation to establish reliable current limits, ensuring system safety, preventing overheating, and maintaining long-term electrical performance.
APPLICATIONS
01.
in the transportation
Heavy-duty connectors play a critical role in rail transit by offering "plug-and-play" solutions for subsystems like power, control, and braking. They ensure reliable, high-integrity connections for traction power and signal control systems, meeting strict demands in extreme conditions. With a modular design, such as the HK and HM series, these connectors support up to 200A, reduce maintenance time by 70%, and enable flexible, space-saving configurations for optimal operational efficiency.
02.
In Modern Vessels
Heavy-duty connectors play a crucial role in modern maritime applications by ensuring stable connections and reliable transmission across various ship systems. They provide fast, modular interfaces for power, signals, and fluid pipelines, withstanding extreme vibrations, moisture, and salt spray. Whether for propulsion systems, navigation, communication, or cargo handling, heavy-duty connectors guarantee the safety, reliability, and operational efficiency of vessels.
CERTIFICATIONS
EAC
UKCA
UL
RoHS
ISO9001
ABOUT HAOKE ELECTRIC
Zhejiang Haoke Electric Co., Ltd leads the heavy-duty connector industry by covering the entire value chain-from raw material smelting to finished-module delivery. Our HA, HE, and derivative families offer thousands of mating combinations for demanding sectors such as rail, wind, and automation. Certified by ISO 9001, UL, and CQC, Haoke ensures compliance with global standards through a single part-number solution. Backed by a professional team with deep industry knowledge, we provide responsive, customized support, ensuring seamless implementation and long-term partnership success.
135+
ACTIVE MEMBERS
13+
YEARS EXPERIENCE
83+
EXPORT COUNTRIES
2000+
PRODUCT RANGE
FAQ
Q: How is the quality of your products?
A: We have passed UL,CE, RoHS,CQC and other certifications, and passed the ISO9001quality management system certification. We strictly control the quality of our products, in fact, with our nearly ten years of manufacturing experience, we have been battling quality problems.We have established a stable quality control system.
Q: Does it support on-site assembly or modular plug-in?
A: Yes, our product is easy to install. Just unbutton it and it can be plugged in.We have frame such as HF6B,HF10B,HF16B,HF24B.
Q: If there is a product quality problem, how to solve it?
A: We provide 12 months warranty, if there is any quality problem, we will recall the goods and replace them in time.
Q: How many years have you been established?
A: We officially established in 2014, and now we have a history of 11 years.
