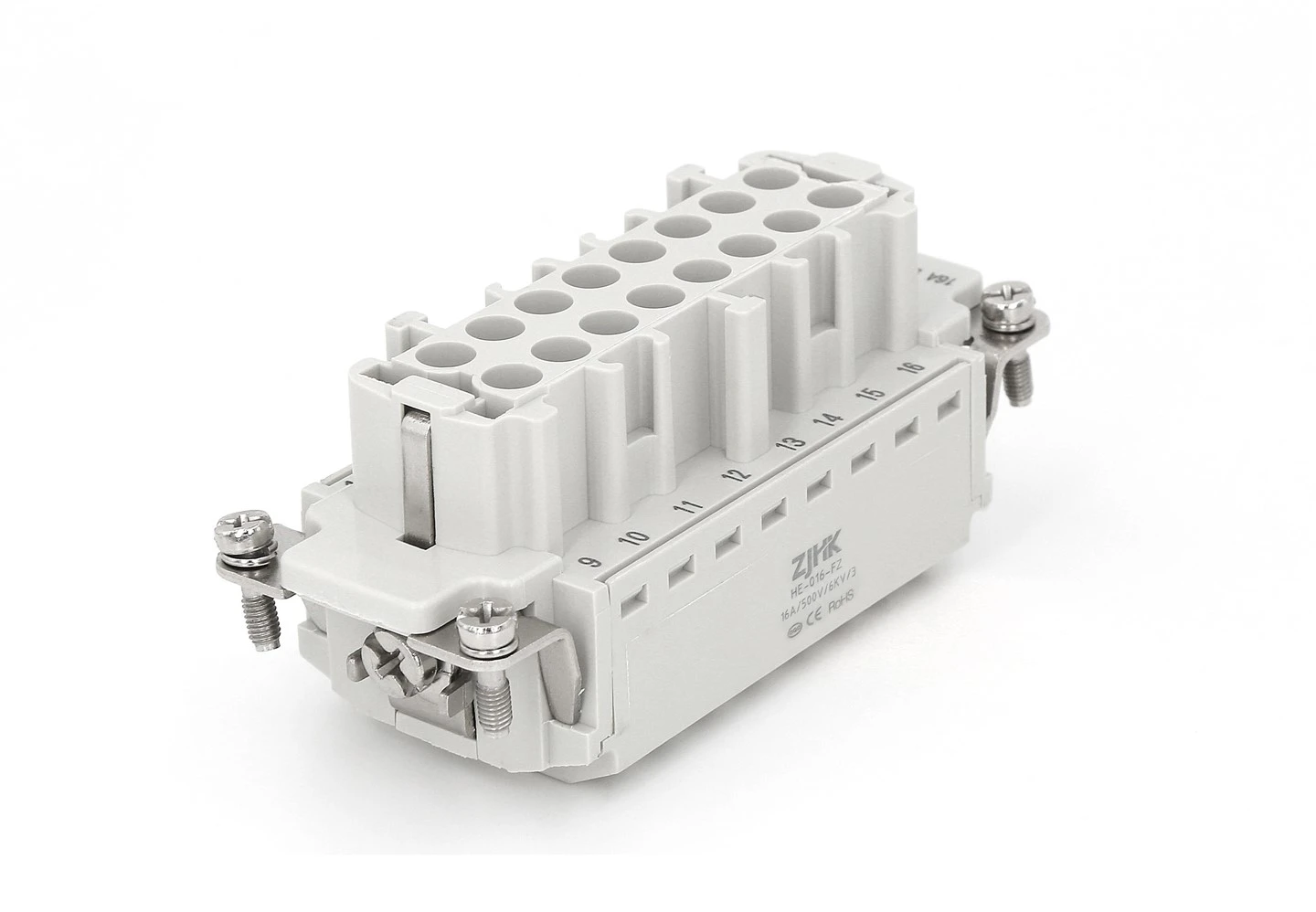

Products Description
HE-016-FZ
This kind of insert is a standard type of the HE series and it can be used to various fields. The quick lock connection method is simple and fast to operate, which is extremely friendly for projects with tight deadlines.
pARAMETERS
Termination method
Quick push
Gender
Female
Number of contacts
6
Model
HE-016-FZ
Rated Current
16A
Rated Voltage
500V
Rated Impulse Voltage
6kV
Pollution Degree
3
Rated Voltage Acc.to UL Csa
600V
Insulation Resistance
≥1010Ω
Material
Polycarbonate
Limiting Temperature
-40℃...+125℃
Flammability Acc.to UL94
V0
Mechanical Working Life-mating Cycles
≥500
Contacts
Copper Alloy
Contact Resistance
≤1mΩ
Wire Gauge
0.14-2.5mm²
AWG
26-14
Stripping Length
7-9mm
Product Material
We use the world's most ultra-high-standard metal materials to make our products,which are properly used to ensure the high quality of our products,as well as to improve the resistance,durability and waterproofness of our products.
Products Overview
Lorem ipsum dolor sit amet consectetur adipisicing elit.
perspective1
Female Insert With 24 Holes
We can see that this is a female insert with 24 holes. The main material of the light gray ferrule is polycarbonate. It can effectively insulate and can work in very harsh working environments.
perspective2

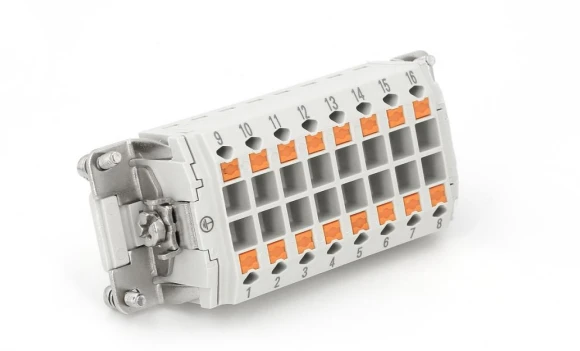

The Connection Method
The connection method is to insert the wire into the hole under the orange module to complete the wiring. After testing, the installation speed of the connector with quick lock connection method is at least half the installation time compared with other connection methods.

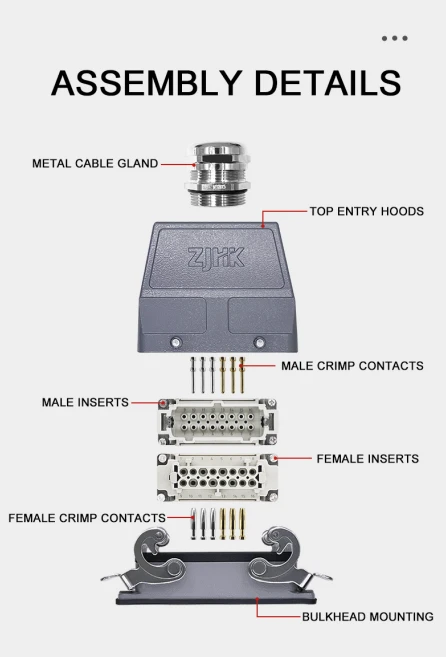

Assembly Details
A complete heavy-duty connector is composed of a cable gland,a hood, a male insert, a female insert and a housing. The shells is made of a high protection grade. If you choose crimping connection, you will also need to purchase crimping contacts.
large enterprise scale
Efficient and precise processing and testing equipment.
Standardized Production
Passed ISO9001 certification and obtained relevant patent certificates.
High-Quality Customized Services
No intermediate links, providing one-stop service from design, processing, mold trial to mass production.
Our Team
Excellent products are inseparable from the joint efforts of the entire manufacturing team. ZJHK not only continuously improves its products, but also continuously strengthens the team cohesion.
one-stop solution
professional team
high quality

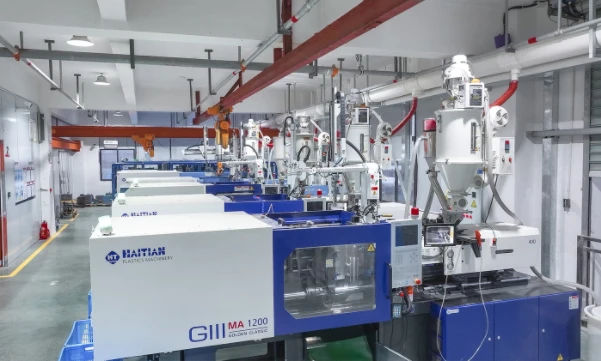

Professional Equipment
large enterprise scale
We have a dedicated finished product warehouse, which uses efficient management methods to accurately record inventory balances and replenish scarce products in a timely manner. Therefore, we can delivery on time without delaying customer use
standardized production
We apecialize in manufacturing HDC.nesting production machines and testing machines.
Core strengths
Choose the plan that suits you best.
Advanced production equipment
Professional production team
13 Years of Deep Technology Accumulation
Dozens of certifiacations and Patents

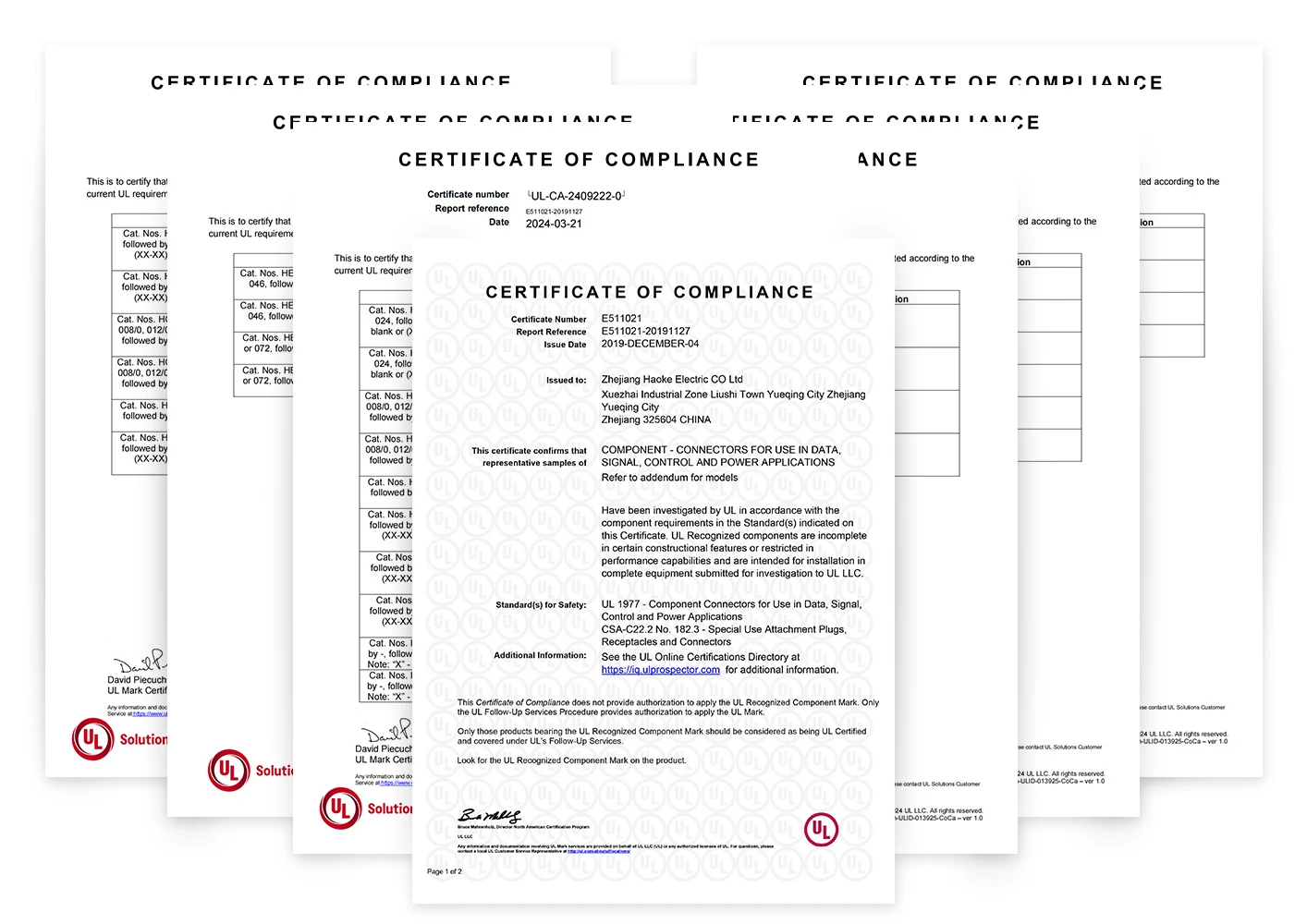

Our Certificate
