introduction

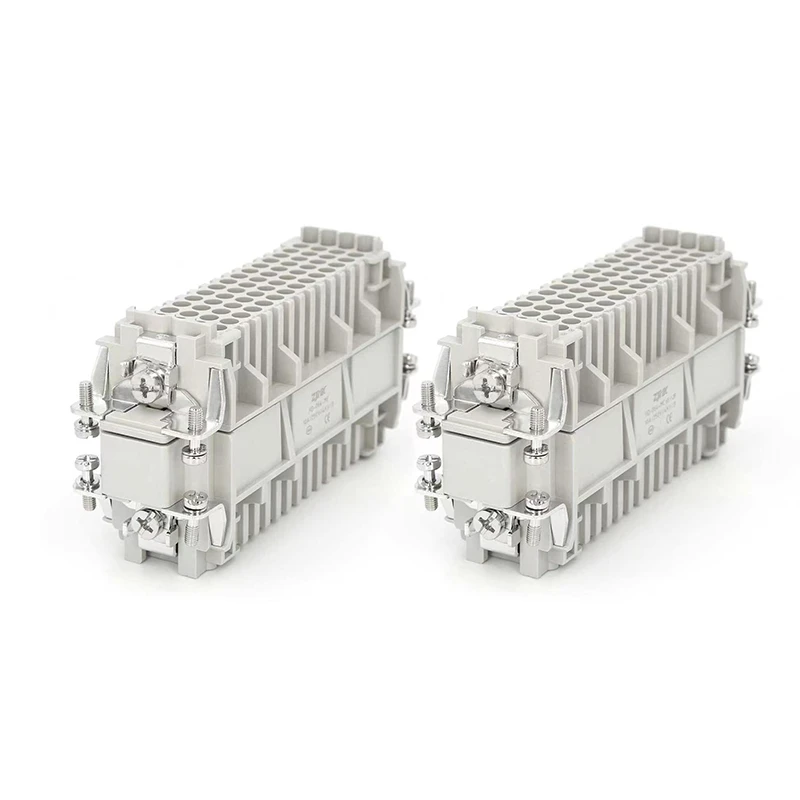

HD-128-MC/FC are 128-position ultra-high-density crimp inserts designed for industrial applications with complex wiring requirements. With 128 contacts integrated into a compact connection system, they help accommodate more circuits while keeping equipment wiring organized and space-efficient.
The inserts use crimp termination and are available in male and female versions, making them suitable for high-density power, control and signal connections. The HD-128-MC/FC is designed for use with 48B hoods and housings.
Technical Specifications
Product Type
Ultra-High Density Crimp Insert
Model
HD-128-MC / HD-128-FC
Number of Contacts
64*2
Rated Current
10A
Rated Voltage
250V
Termination
Crimp
Gender
Male / Female
Matching Housing
48B
Insulation Material
Polycarbonate
Contact Material
Copper Alloy
Contact Plating
Silver / Gold
Wire Gague
0.14–2.5 mm²
Operating Temperature
-40°C to +125°C
Flammability
UL94 V-0
Mechanical Life
≥500 mating cycles
Product datasheet

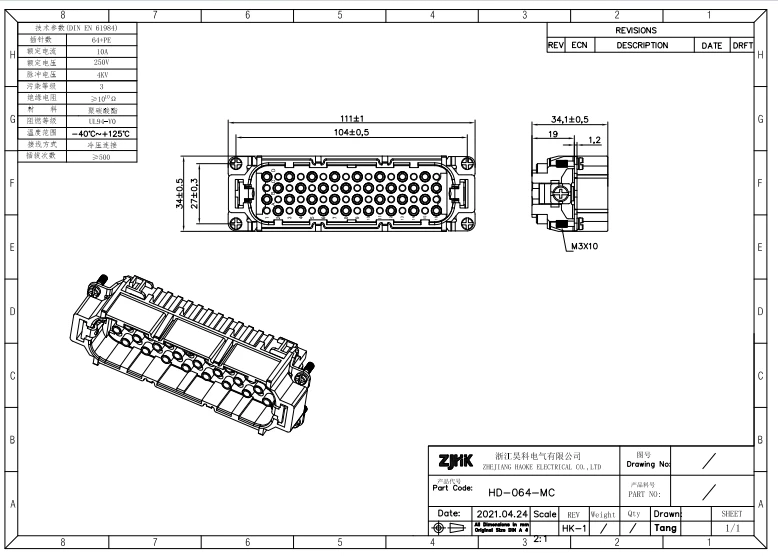

HD-064-MC

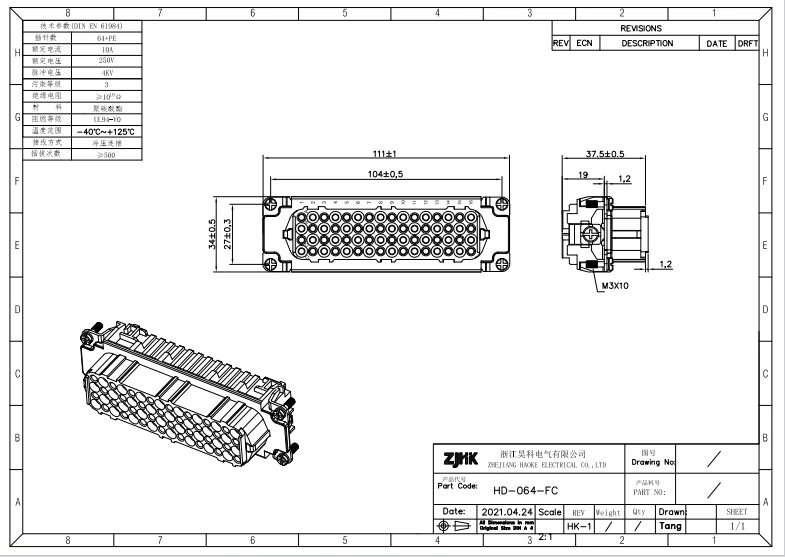

HD-064-FC

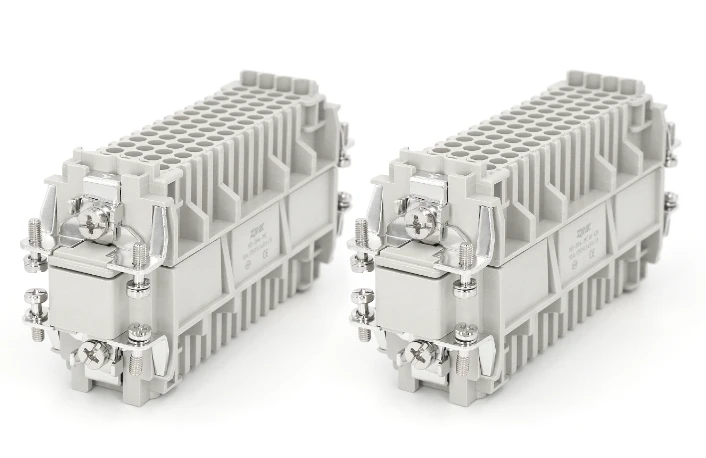

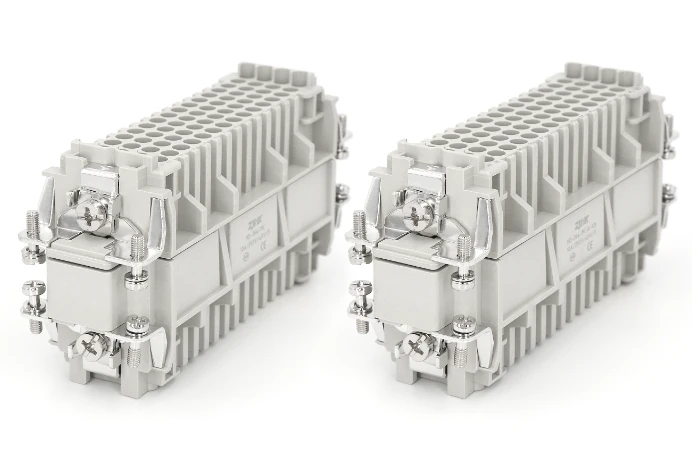

Core strengths
128 Positions
High contact density allows a large number of circuits to be connected through one connector system.
Crimp Termination
Crimp connection provides a practical wiring method without soldering and makes assembly and maintenance more convenient.
10A Rated Current
Suitable for industrial control, signal and low-power electrical connection applications.
48B Compatible
Designed to work with 48B hoods and housings, providing a complete heavy-duty connector solution.

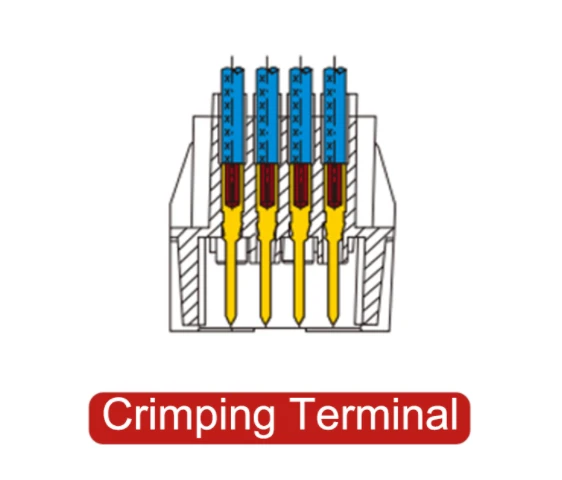

Crimping Termination
The HD-128-MC/FC uses a crimp connection method, allowing individual wires to be securely terminated to the contacts without soldering. Crimp contacts can also be replaced when necessary, making the system easier to assemble, maintain and service.
For the 10A contact system, compatible wire sizes range from 0.14 to 2.5 mm², according to published technical data.
matching crimping contacts
CDSM
Copper alloy with silver plated
Rated Current: 10A
0.14~2.5mm2
Gender: Male
CDSF
Copper alloy with silver plated
Rated Current: 10A
0.14~2.5mm2
Gender: Female
CDGF
Copper alloy with gold plated
Rated Current: 10A
0.14~2.5mm2
Gender: Male
CDGM
Copper alloy with gold plated
Rated Current: 10A
Wire Gague: 0.14~2.5mm2
Gender: Female
delivery and package
Delivery
We offer flexible delivery options to meet different customer requirements, including international express, air freight and sea freight. Standard orders are normally ready for shipment within 10 days after order confirmation, with delivery arrangements made according to the order quantity and shipping method.
Package
Before shipment, every order is carefully checked and packed in individual protective packaging and export cartons. This helps protect the connectors from scratches and damage during transportation while keeping the products securely arranged for easier handling and storage.
Tell us your required contact number, current rating, housing size and application. Our technical team can help you select the right insert and connector combination.
