introduction

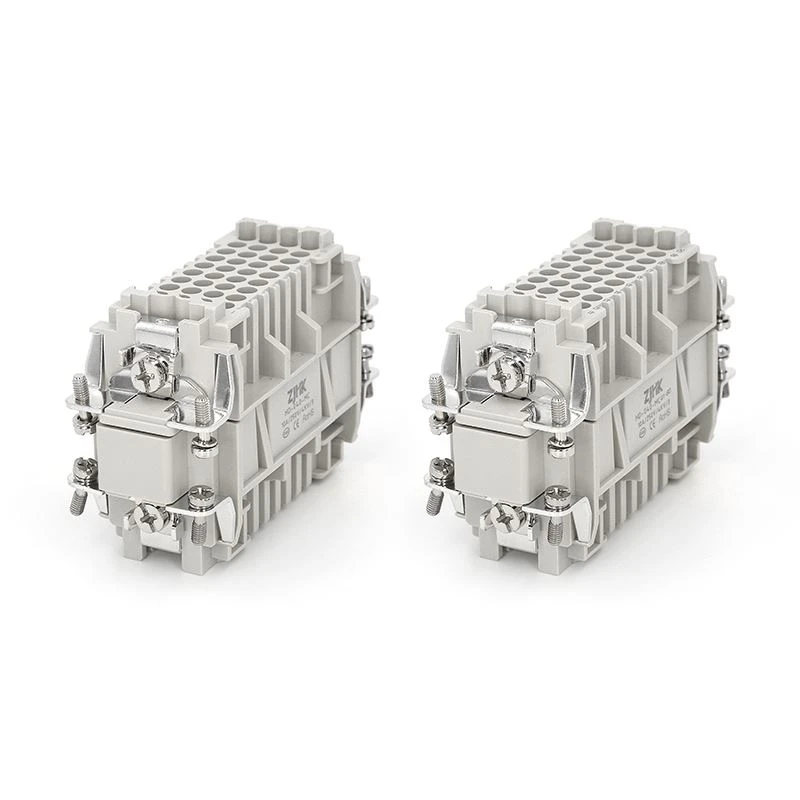

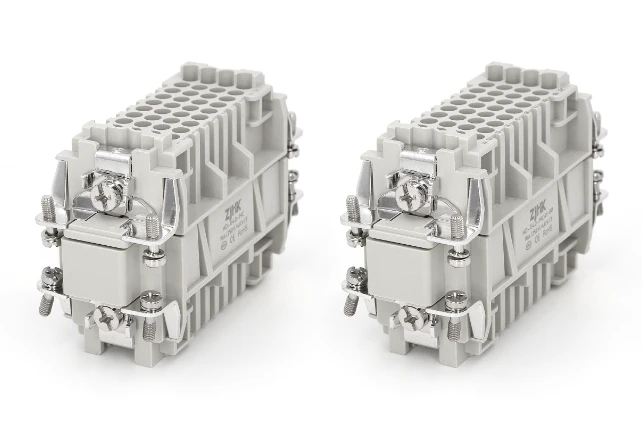

The 80-position high-density inserts are designed for industrial equipment that requires a large number of circuits in a compact connection space. With an 80-contact configuration and a 10A rating, they provide an efficient solution for organizing multiple power, control, and signal connections. The crimp termination supports efficient wiring and makes contact replacement more convenient during maintenance.
parameters
Rated Current
10A
Rated Voltage
250V
Positions
40*2
Gender
Male&Female
Working Temperature
-45~+125℃
Connection Method
Crimping
Contacts
Current
10A
Material
Copper Alloy, Silver or Gold Plated
Wire Gague
0.37~2.5mm2
Product Datasheets

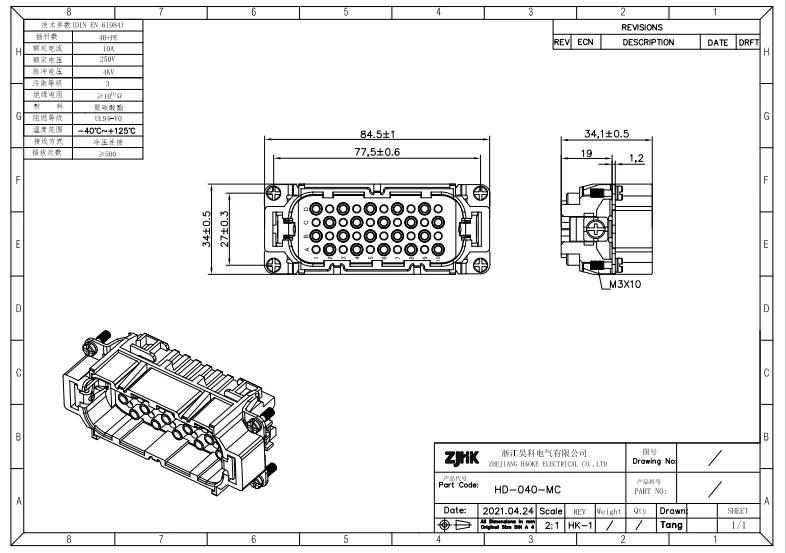

HD-40-MC

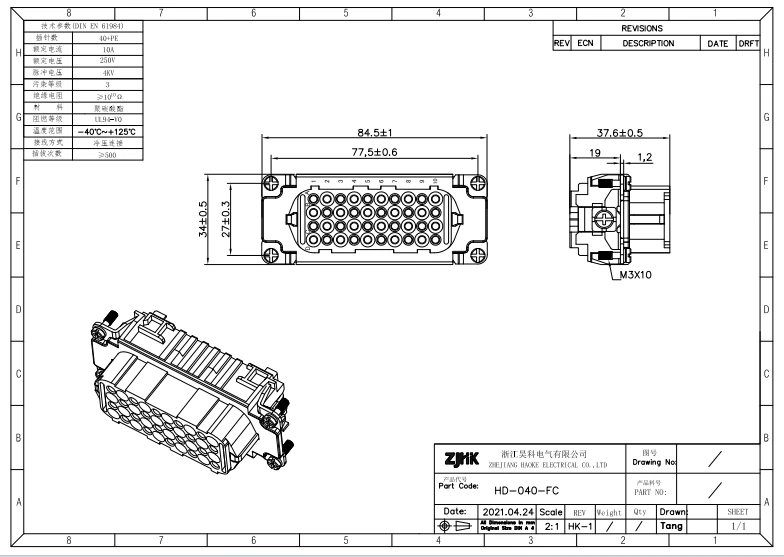

HD-040-FC
Four Core Advantages
80 Positions
High contact density for applications requiring multiple circuits in limited space.
10A Rated Current
Suitable for industrial power, control and signal connection applications.
Crimp Termination
Quick and convenient cable termination without soldering.
Male & Female Versions
Matching male and female inserts provide a complete connection system.
Applications
Reliable power connections are required between lighting distribution equipment and lamps; multiple control loops may be involved between control cabinets and stage equipment. For equipment requiring centralized cabling, multi-core connectors can consolidate multiple lines into a single connector, thereby reducing independent connection points and making the overall cabling more compact.
Rail Transit
In rail transit applications, the modular heavy-duty connectors provided by ZJHK can meet the diverse needs of mixed power and signal transmission. Through modular design, they can be flexibly configured according to different equipment structures, reducing the number of interfaces and improving system integration.Meanwhile, Haoke products prioritize mechanical strength and locking reliability in their structural design , making them suitable for the vibration environments commonly encountered in rail transit. Combined with a sealed structure, they also meet certain protection requirements.
why do you choose ZJHK?
Built for Industrial Connections
At ZJHK, we focus on heavy-duty connector systems and provide a wide range of contact configurations for different industrial applications. From product selection and technical drawings to customized requirements, our team works with customers to find a suitable connection solution for each project.
Large enterprise scale
wide application of technology
high-quality customized services
