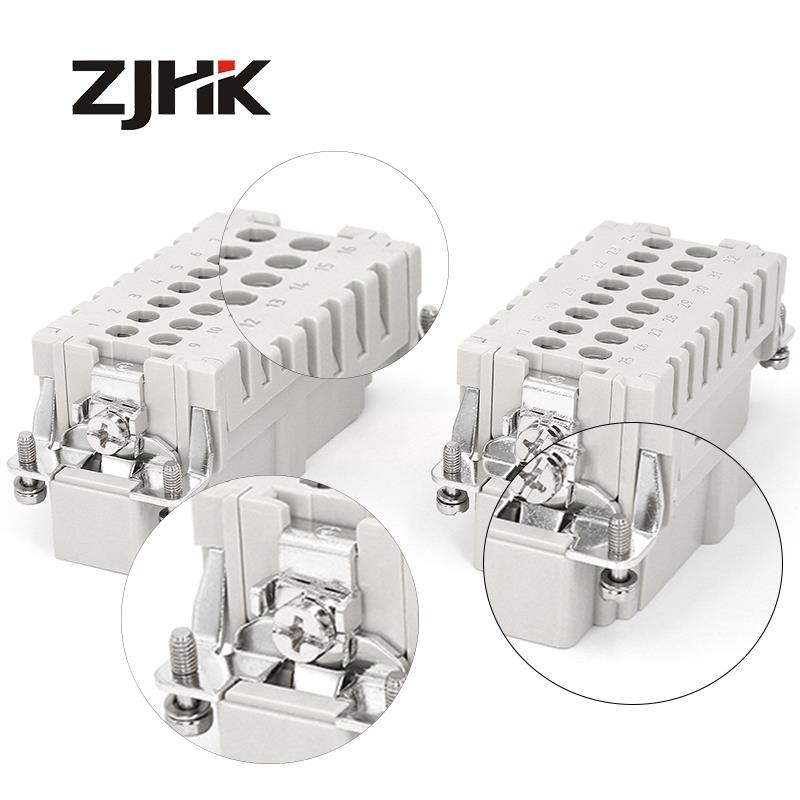

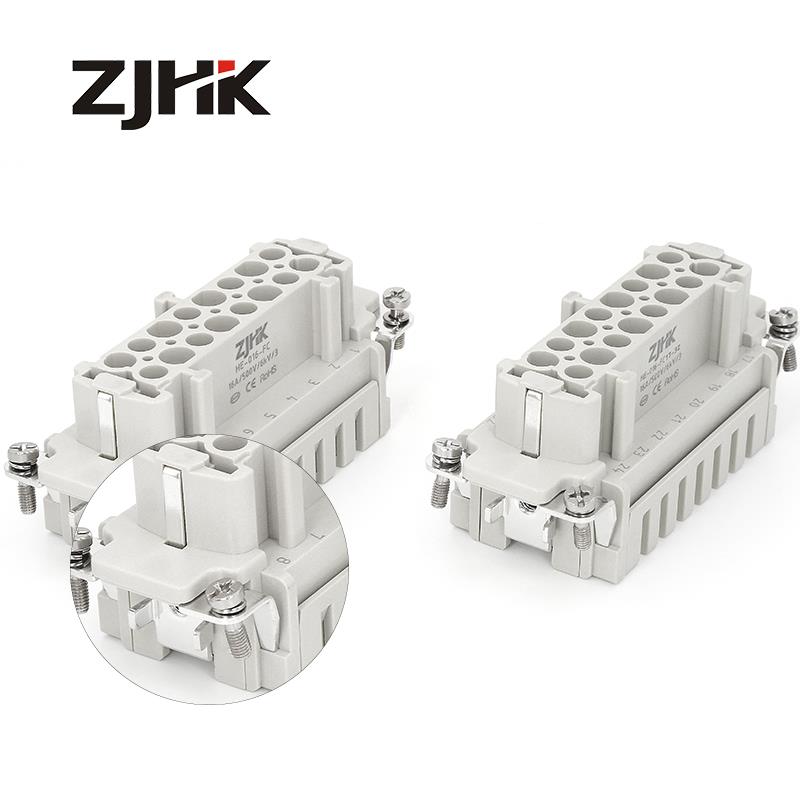

Haoke HE Standard Insert, 32(16+16) + PE, 16A, Male&Female , Crimp Terminal ,

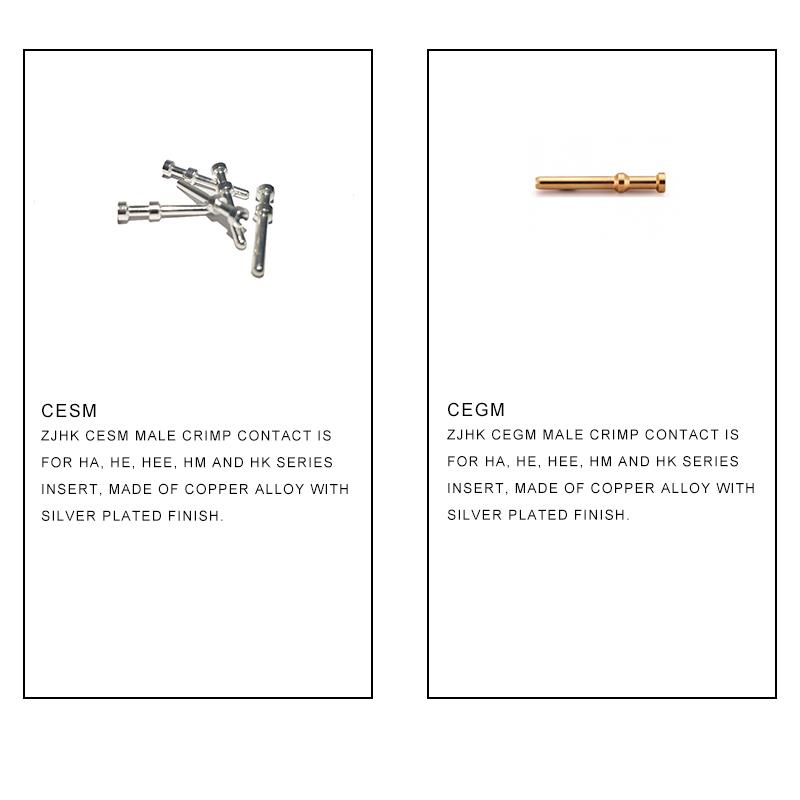

Please Order Crimp Contacts Separately
Order number | HE-032-MC&HE-032-FC |
Type | HE standard inserts |
Certifications | CE/ CQC/ ISO9001/ SGS /ROHS /UL |
Descriptions | Heavy Duty Power Connector Insert, 32 Poles + PE, 16 A, Crimp Terminal |
Gender | Male and Female |
Mating Cycle (Mechanical Working Life) | greater or equal to 500 times Plug and unplug |
Matching housing and hoods | H32B size housing and hood |
Working Temperature Range | -40⁰C … +125⁰C |
Termination Method | Crimp Terminal, Order Crimp Contacts Separately |
Number of Contacts | 32(16+16) + PE,(1-16,17-32) |
Rated Current | 16A |
Rated Voltage Acc. to EN61 984 | 500 voltage |
Rated Impulse Voltage | 600 voltage |
Contact Resistance | <= 3mΩ |
Insulation Resistance | >=1010Ω |
Wire Cross Section Range | 0.14mm2 – 4.0mm2 |
Contacts Plating | Standard: Hard-Silver Plated Copper Alloy, Optional Hard-Gold Plated Copper Alloy |
More details of inserts
Related Products
Acceptable wire cross section area:
· 0.37mm2
· 0.5mm2
· 0.75mm2
· 1.0mm2
· 1.5mm2
· 2.5mm2
· 3.0mm2
· 4.0mm2
About us
Haoke Electrical is one of world biggest manufacturers of heavy duty connectors , with over 4300 SKUs.
The products include HA Slim Connector, HE Standard Connector, HEE High Density Connector, HD&HDD Ultra-High Density Connector, HSB High Current Connector, HK Combination Connector, HM Flexible Modular Connector and HQ Compact Connector.
Haoke Products are widely used in industrial automation, hot runner molds, transportation,machinery-metalworking,machinery plastic, equipment manufacturing, robotics,industrial system connections, wind energy,Energy distribution and storage ,Medical,information and control
FAQ:
1. Q: If I'm interested in your 32pin crimp heavy duty connector when I can receive your quotation and detail information after send the enquiry?
A:All your inquiry will be replied in 24 hours.
2. Q:Your rectangular connector seems perfect but what's the difference between you and other suppliers?Because I find some cheaper price from others
A: Our HDC special for Industrial 4.0 solution are high quality customized.We use the imported material SABIC 3412 for heavy duty connector inserts .Not all the HDC Material are the same !!
3. Q:I were use Harting brand before,can i tell you their order number to help me match ?
A:Of course you can help you.Actually , in order to facilitate the use of harting's customers, we have set the order number to be the same as HARTING, so that customers can match and replace.
