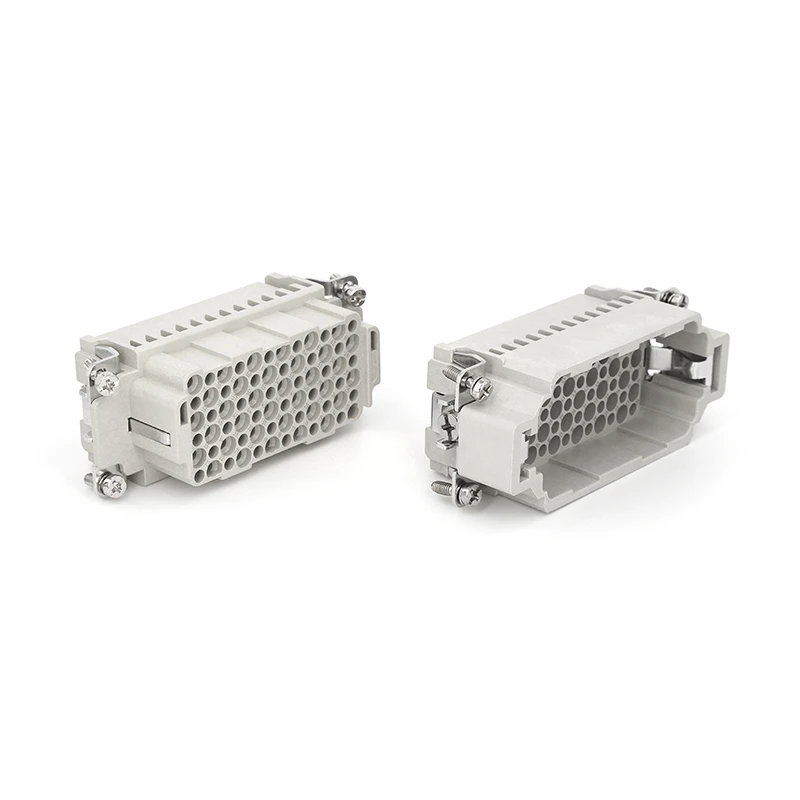

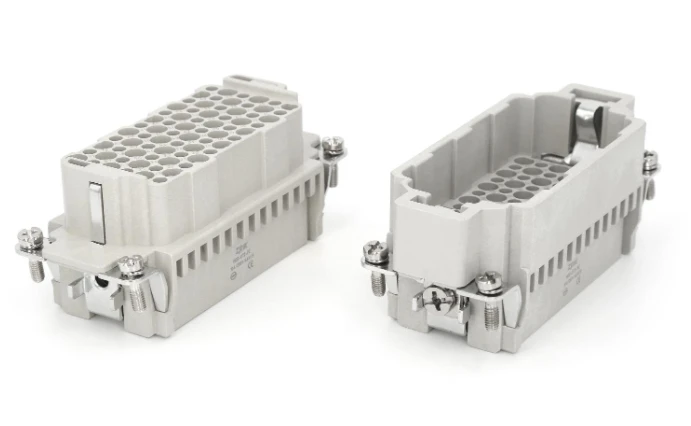

hDD-072-MC/FC
The HDD-072-MC/FC is a high-density crimp insert designed for industrial equipment with complex wiring requirements. With 72 contacts plus PE, it allows multiple power, control and signal circuits to be integrated into one connector system, helping keep wiring organized while making better use of limited installation space.
technical Parameters
Product Series
HDD
Product Type
High-Density Crimp Insert
Model
HDD-072-MC / HDD-072-FC
Number of Contacts
72 + PE
Connection Type
Crimp
Rated Current
10A
Rated Voltage
250V
Rated Impulse Voltage
4kV
Contact Material
Copper Alloy
Contact Plating
Silver / Gold
Contact Resistance
≤3 mΩ
Insulation Material
Polycarbonate
Wire Size
0.14–2.5 mm²
AWG
26–14
Operating Temperature
-40°C to +125°C
Flammability
UL94 V-0
Mating Cycles
≥500
Technical Drawings

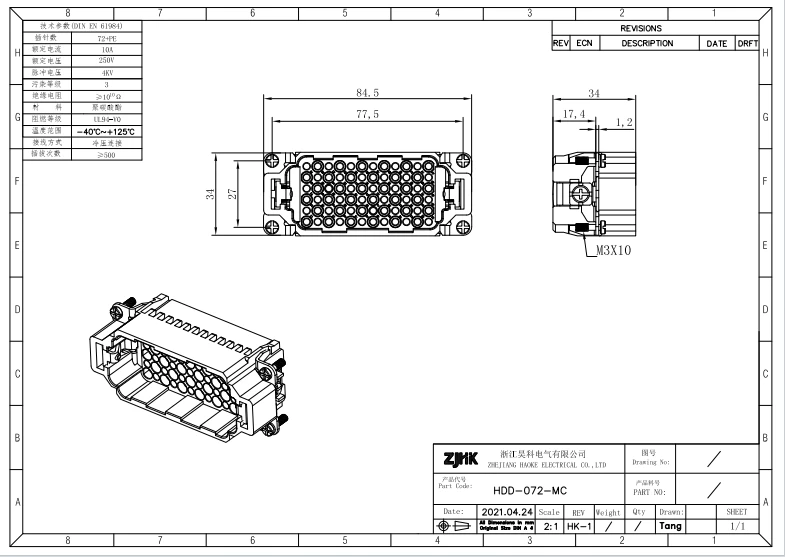

HDD-072-MC

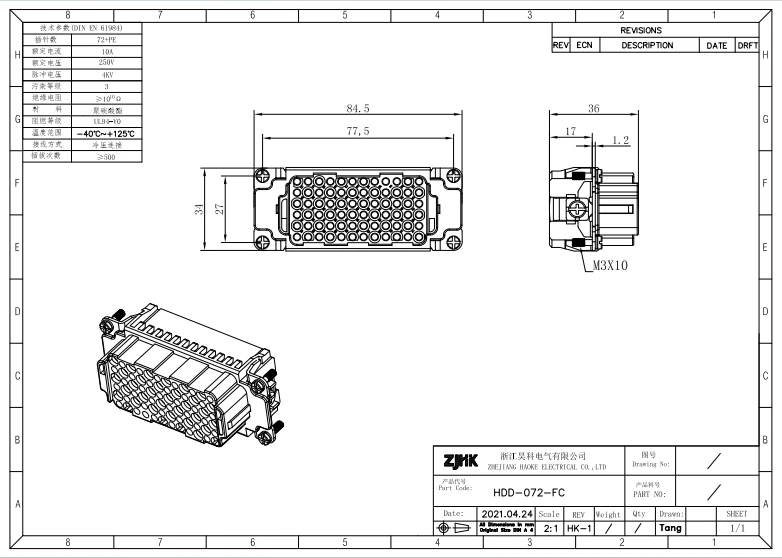

HDD-072-FC
adapted Contacts
CDSM
Copper alloy with silver plated
10A
0.14~2.5mm2
Male
CDSF
Copper alloy with silver plated
10A
0.14~2.5mm2
Female
CDGF
Copper alloy with gold plated
10A
0.14~2.5mm2
Male
CDGM
Copper alloy with gold plated
10A
0.14~2.5mm2
Female
why choose hDD-072?
With 72 contacts, 10A capacity and crimp termination, HDD-072-MC/FC provides a practical solution for equipment with a large number of individual circuits.
The high-density design helps reduce the need for multiple separate connection points, while the crimp termination keeps cable assembly and maintenance relatively straightforward.
applications
In a complete battery testing system, connectors, although not the most conspicuous components, play a crucial role in connecting the internal components and between different devices. Especially when the testing equipment needs to replace test modules, adjust wiring, or undergo maintenance, the ease of connection directly impacts on-site operational efficiency.
Wind Energy
The HSB series heavy-duty connector is ideal for wind power systems, providing secure and reliable electrical connections in turbines, control cabinets, and power distribution equipment. Its high current capacity, durable construction, and excellent environmental resistance ensure stable performance under demanding operating conditions.
