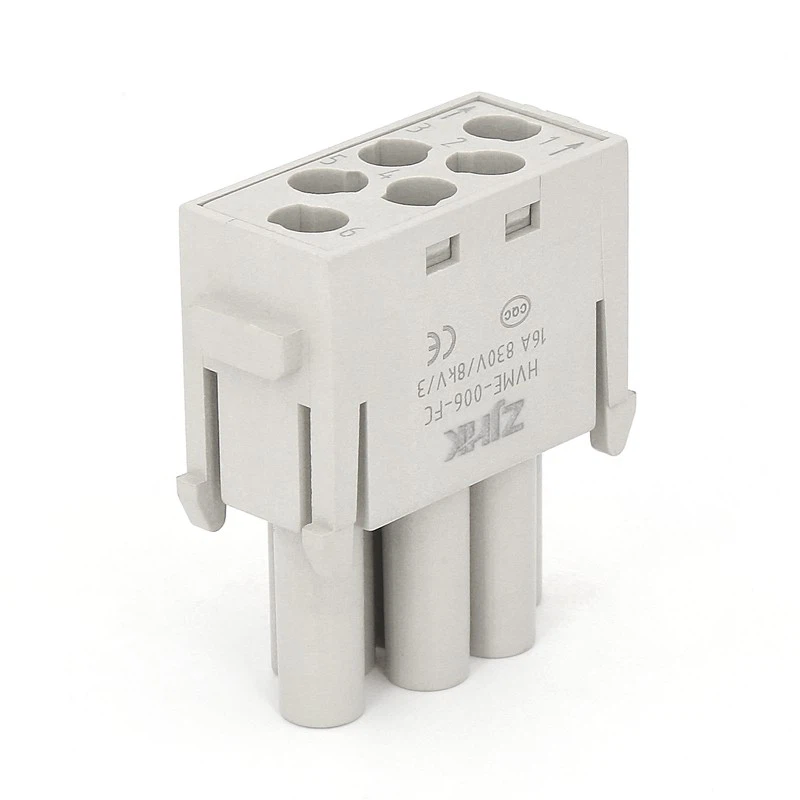

The left picture clearly shows the product details. This 6-pin female ferlet belongs to the high-protection model in the modular series, supporting 830V high-voltage transmission and providing stable power supply for mechanical equipment. This module is specially designed for connecting 6 wires, compatible with cables with cross-sectional areas ranging from 0.14 to 4 mm², and can be adapted to the 6B to 24B series frames produced by our company, respectively achieving the integrated installation of 2, 3, 4, and 6 modular plugs. The product is compatible with international brands such as Harting and Tyco.
TECHNICAL CHARACTERISTICS
Specifications
DIN EN 60 664
DIN EN 61 984
Inserts
Number of contacts
6
Electrical Data Acc.to EN 61 984
Rated Current
16A
Rated Voltage
830V
Rated Impulse Voltage
8kV
Pollution Degree
3
Rated Voltage Acc. to UL/CSA
600V
Insulation Resistance
≥1010Ω
Material
Polycarbonate
Limiting Temperature
-40℃...+125℃
Flammability Acc.to UL94
V0
Mechanical Working Life-mating Cycles
≥500
Contacts
Material
Copper Alloy
Surface
Hard-silver/hard-gold Plated
Contact Resistance
≤1mΩ
Crimp Terminal
mm2
0.14-4mm2
AWG
26-12
CONSIDERATE SERVICE
Our products include a one-year warranty for comprehensive coverage against common operational faults. Furthermore, our professional after-sales team is readily available to address any concerns post-purchase, ensuring your consumer rights are fully protected.
MULTIPLE PERSPECTIVE
at the side
As shown in the side display of the product, it is integrally die-cast with a single core, ensuring high stability.
at the bottom
This is the side at the bottom of the product where the machine and wires are connected. It can be connected to 6 wires to achieve a transmission of 16A and 830V.
PROFESSIONAL FACILITIES AND VENUES
Energy Dispersive X-ray Fluorescence Spectrometer
EDXRF spectrometers provide non-destructive, rapid, and accurate multi-element analysis from sodium (Na) to uranium (U), supporting solid, powder, and liquid samples. Essential for quality control and R&D, they enable precise composition measurement, impurity identification, and compliance verification, offering reliable data for material development and process optimization. Their ease of use and efficiency make them indispensable in modern industrial and scientific applications.
WAREHOUSE
At the core of our operations is a warehouse and production facility dedicated to heavy-duty connectors. Beyond maintaining an extensive inventory of components, we excel in manufacturing a full spectrum of connector products, from standard 3-pin to custom 48-pin configurations. This synergy between readily available stock and advanced production expertise allows us to offer tailored solutions and guarantee a robust, responsive supply chain for every client.
Efficiency, Sealed Elements
Turn assembly and field repairs into simple plug-and-play operations with heavy-duty connectors. Pre-wire harnesses off-line to accelerate production and enable tool-free module swaps in minutes, even amid dust and rain. The high-density inserts save crucial space by combining power, data, and hydraulics in one frame, while IP65/68-rated housings provide unwavering protection against contaminants and moisture-maximizing uptime when every second counts.
Agricultural Machinery
Heavy-duty connectors are vital for modern agricultural machinery, engineered to withstand harsh conditions like moisture and vibration. They ensure operational reliability in irrigation systems by connecting control units to motors and sensors. Furthermore, these robust connectors are crucial for precision agriculture, providing error-free data links for GPS guidance and variable-rate application systems, enabling enhanced efficiency and automated farming.
IN THE ROBOTICS INDUSTRY
Heavy-duty connectors are critical in robotics, especially for Automated Guided Vehicles (AGVs). They enable rapid, reliable charging with over 500 mating cycles, minimizing downtime. Simultaneously, they ensure stable signal transmission for real-time communication with control systems, guaranteeing efficient and safe warehouse operations.
CERTIFICATIONS
EAC
UKCA
UL
CE
RoHS
ABOUT OUR COMPANY
Zhejiang Haoke Electric has secured a front-runner position in the heavy-duty connector arena by integrating the entire value chain-from raw material to finished module. Its portfolio spans the HA, HE and derivative series, offering thousands of mating combinations that serve rail, wind, automation and other demanding segments. Certified to ISO 9001, UL and CQC, Haoke anchors its competitiveness on consistent quality, enabling customers to clear regulatory hurdles worldwide with a single part number.
13+
YEARS EXPERIENCE
83+
EXPORT COUNTRIES
130+
ACTIVE STAFFS
2000+
PRODUCT RANGE
FREQUENTLY ASKED QUESTIONS
Can I put my own logo on the product?
Of course. We are the manufacturer, the product can be marked with a unique logo.
Which countries do you mainly export to?
Our products exported to nearly 80 countries,such as Germany,France,UK,Italy,Russia,South Korea.
Does this insert can fit with my frame?
Our module insert can fit with Harting,ILME,Weidmuller,TE,walther,GM and other brand.
How to order?
Please email us your purchase order and we will send you a quotation and a proforma invoice.
