Inserts Technical data
Identification | |
Category | Inserts |
Series | HA |
Series | |
Termination method | Screw |
Gender | Male&Female |
Size | 32 A |
Number of contacts | 32 (1-16,17-32) |
PE contact | Yes |
Technical characteristics | |
Conductor cross-section | 0.75 ... 2.5 mm² |
Rated current | 16 A |
Rated voltage | 250 V |
Rated impulse voltage | 4 kV |
Rated voltage acc. to UL | 600 V |
Insulation resistance | ≥ 1010 Ω |
Limiting temperature | -40 ... +125 °C |
Tightening torque | 0.5 Nm |
Mating cycles | ≥ 500 times(Standard) |
Material properties | |
Material (insert) | Polycarbonate |
Colour (insert) | Pebble grey |
Material&Surface （contacts） | Copper alloy & Silver plated |
RoHS | compliant with exemption |
Packaging size | 1 |
Country of origin | China |
Current Carrying Capacity:
Details of inserts:
Design drowing:
What's our advantage:
Standard hoods/housings for industrial connectors.
Features:

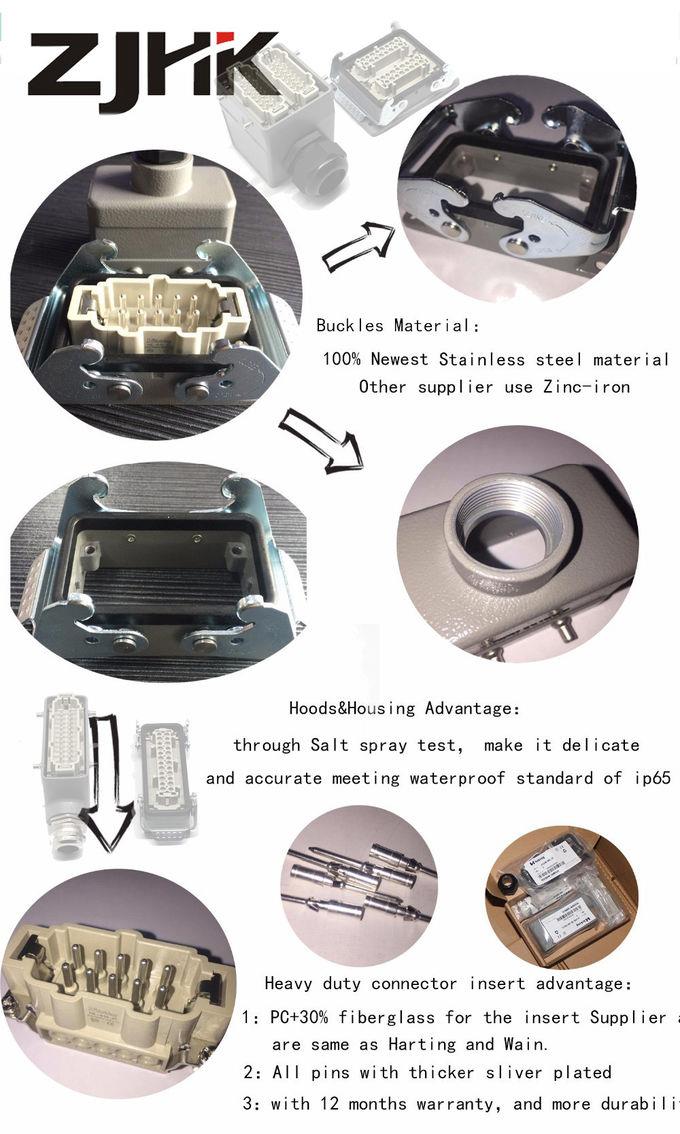

· Field of application: For excellent mechanical and electrical protection in demanding environments, for example, in the automobile and mechanical engineering industries also for process and regulation control applications
· Distinguishing feature: Hoods/housings color-coded grey (RAL 7037)
· Material of hoods/housings: Die-cast light alloy
· Locking levers: ZJHK-H-Easy Lock® Cable entry protection Optional special cable clamp for hoods with strain relief, bell mouthed cable fitting and anti-twist devices
· Innovative ZJHK-H-Quick Lock® termination with reduced wiring times
· No special tools required
· Suitable for all metal and plastic hoods and housings of the series H3 A
· For currents up to 10 A
Series Compatibility:
The H-Snap® elements are compatible with the standard inserts and terminal block connectors of the following series (named series HB as follows):
· H D®, 40 and 64 pins
· H DD®
· HE® HD / DD
· H® EE
· H® EEE
· H® ES
· H® HsB
· H-Com®
· H-Modular®
FAQ:
1.I were use weidmuller before,but their order number is difference with yours,what can i do ?
A:When selecting heavy duty connector ,we need to choose as follow:
1) Rated voltage and current
2) Poles of connector
3) Choosing hood and housing type
4) Accessories (selecting cable gland )

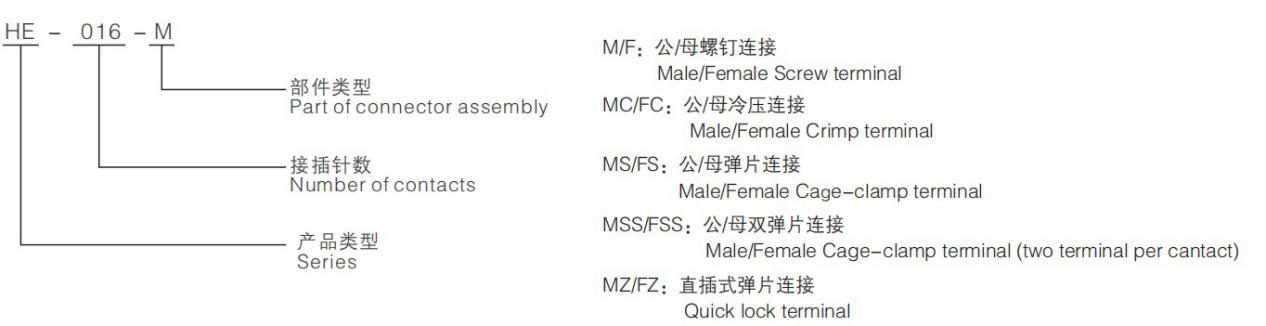

Inserts explanation:
I. e:HE-016-Means male inserts of 16 poles in HE series.
Type of hoods and housings
i. e:H16B-SE-2B-M25 means a side entry hood with M25 thread in H16B Series.
Company products are packaged by default for individually packaged,if you need the overall package,please let us know in advance.
Package details：
Any questions please feel free to contact us, 7*24 hours for you !!!
