Manufacturer | ZJHK |
Type of connector | rectangular |
Connector | module |
Connector series | HM |
Number of pins | 8 |
Connector variant | w/o contacts |
Current rating | 16A |
Rated voltage | 400V |
Gender | MC/FC |
Mating Cycle | >= 500 |
Size | Requires use with Hinged frame (purchased separately) |
Termination Method | Crimp Terminal |
Wire Gauge | 0.14mm2 – 4mm2 (AWG26-12) |
Tool Recommend | TL02G Crimping Tool, TL01 Contact Removal Tool |
Flexible Combination Heavy Duty Power Connector Insert, 8 Poles , 400V, 16A, Male, Crimp Terminal, Crimp Module. (Order Crimp Contacts Separately)

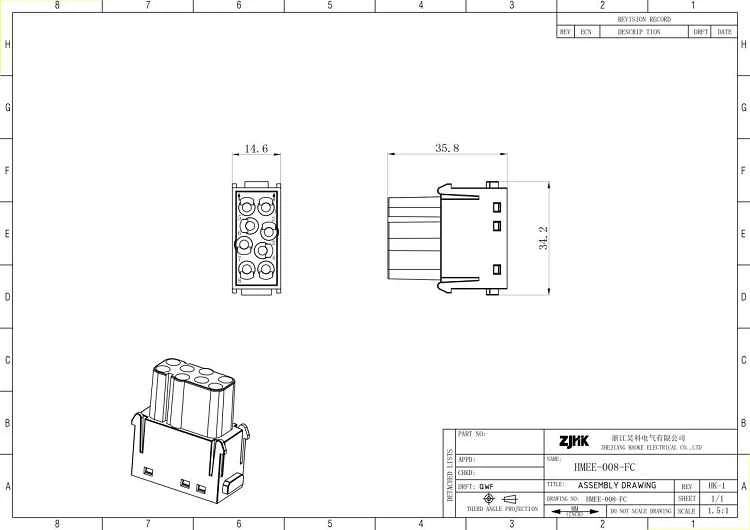

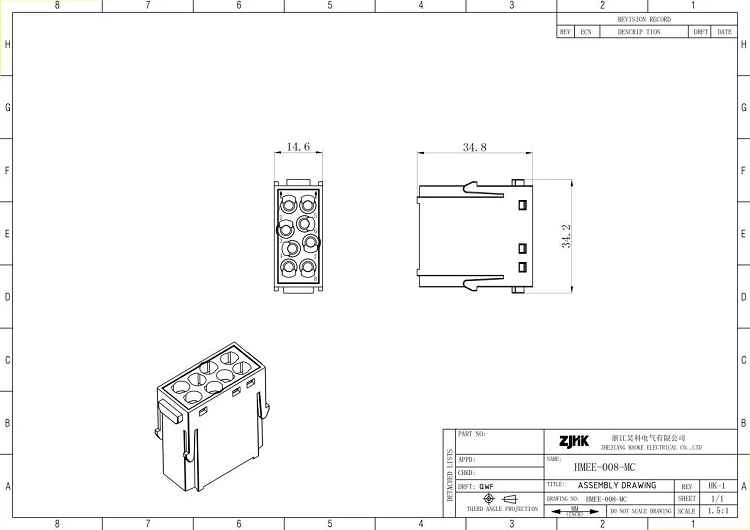

Design drawing

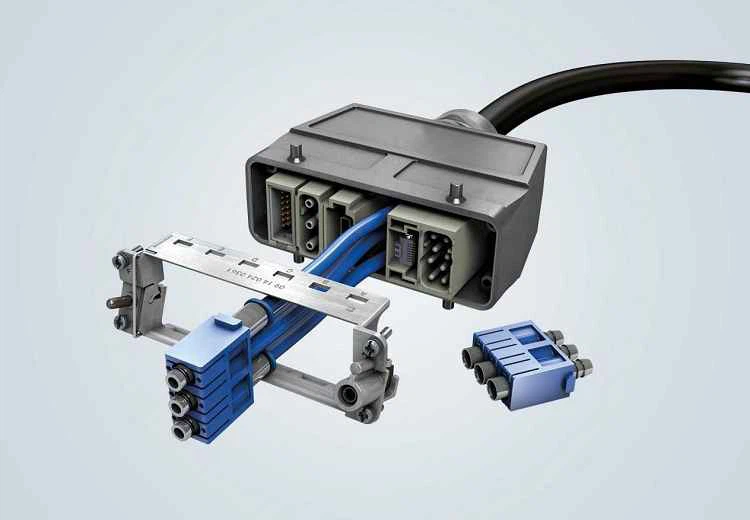

The new Modular® Hinged Frame Plus delivery time savings up to 40%. Increase the efficiency of your assembly!
10.000 mating cycles due to contacts made of metal. Optimized flow rate for maximally efficiency.

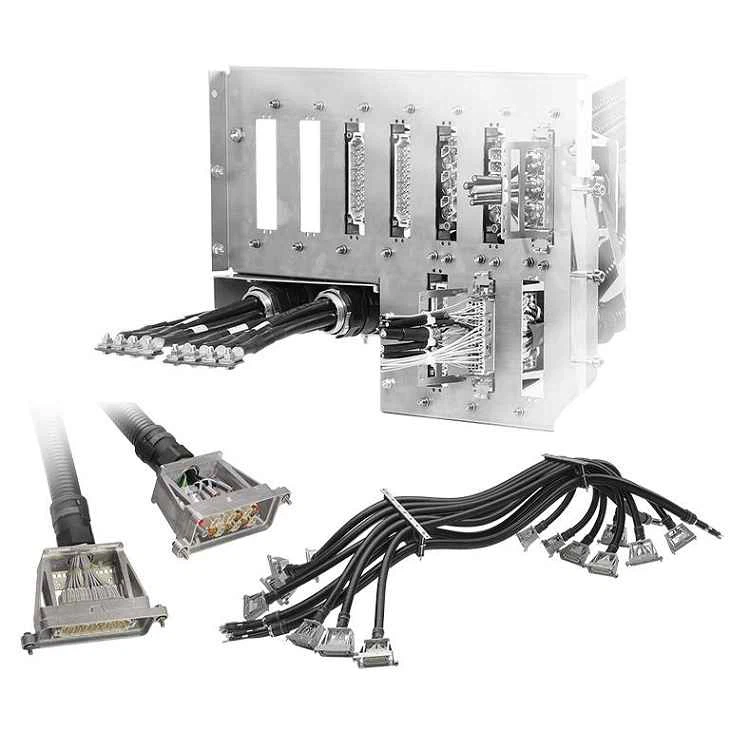

Application
Pre-installed
Faster, save time, safe and reliable.
Long-term tests are possible.
Mechanical construction and modified connectors.
Customised packaging ensures safe shipping.
Contact us !
Your inquiry will be answered within 24 hours, and a more perfect solution will be provided.
