Products Description
introduction
This is a high-protection series shell designed for harsh environments. With a size specification of 3A, it adopts a bottomless design paired with a side outlet lower shell structure. The main body of the shell is made of classic black, and its surface is treated with a professional powder ring spraying process, which not only has a delicate and uniform texture but also enhances wear resistance and corrosion resistance, providing reliable protection for internal components.
Technical Specifications
Pressure Tight Housing
Size
3A
Cable Entry
Bulkhead Mounting
Material
Zinc die-cast
Colour
Black
Locking Element
Lever Type
Screw locking
Surface
Epoxy power
Limited Temperature
-40...+125℃
Flammablity acc. To UL 94
V0
Degree of Protection
IP68
Thread Size
Part Number
HP3A/H-SF-2H
09407030950
C.HP3A/H-SF-2H
09400030950
Product Overview

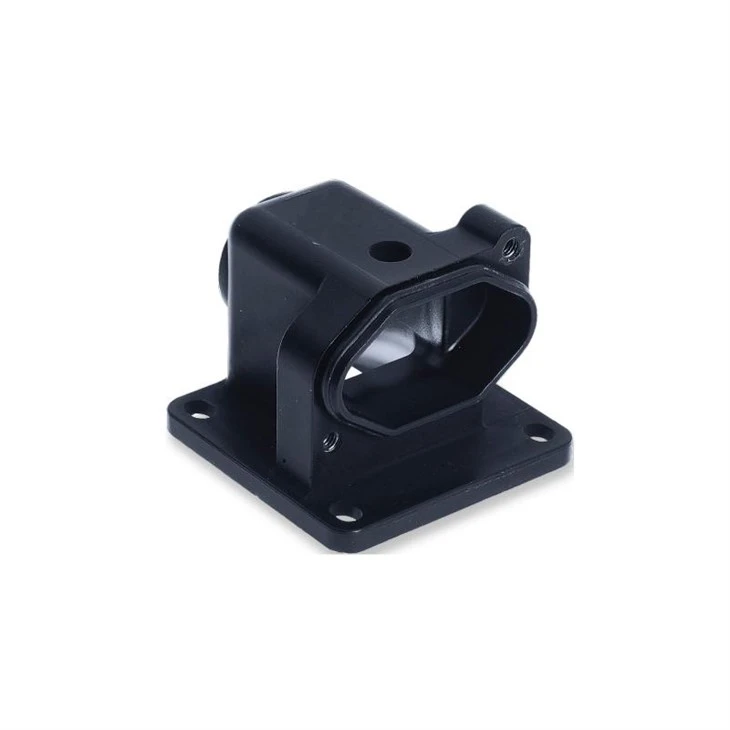

HP3A/H-SF-2H
This is a high-protection series shell designed for harsh environments. With a size specification of 3A, it adopts a bottomless design paired with a side outlet lower shell structure. The main body of the shell is made of high-quality zinc alloy, presented in classic black, and its surface is treated with a professional powder ring spraying process, featuring a delicate and uniform texture as well as excellent wear resistance and corrosion resistance. The product has an IP68 protection rating, which can effectively resist dust intrusion and deep water immersion, providing comprehensive and reliable protection for internal precision components.
Products Series
Haoke Electric has deeply engaged in the heavy-duty connector field and built a complete industrial chain covering R&D, design, manufacturing, sales and after-sales service. Currently, the company's product portfolio includes multiple series such as HA, HE, HEE, HD, HDD, HSB, HK and HQ. Through flexible combinations, it can form thousands of solutions, fully meeting the connection needs of various fields including industrial automation, construction machinery, logistics and warehousing, and new energy. Whether for power transmission in high-current scenarios or signal interaction in complex environments, Haoke Electric can provide accurately adapted products, eliminating customers' worries about finding suitable solutions.
Large enterprise scale
wide application of technology
high-quality customized services
High quality
advanced equipment
professional team
one-stop solution
successful cases
Choose the plan that suits you best.
hA-003-m/f
Rated Current: 10A
Rated Voltage: 230V
Terminal Type: Screw
Contacts Number: 3
hA-003-MS/FS
Rated Current: 10A
Rated Voltage: 230V
Terminal Type: Cage-clamp
Contacts Number: 3
hA-004-M/F
Rated Current: 10A
Rated Voltage: 400V
Terminal Type: Screw
Contacts Number: 4
HD-007-MC/FC
Rated Current: 10A
Rated Voltage: 250V
Terminal Type: Crimp
Contacts Number:7
applications
The motor drive system is the power source of new energy vehicles, requiring connectors to efficiently transmit high-power electrical energy. Rectangular heavy-duty connectors can meet the high current demands of motor power supply while ensuring stable transmission of control signals. In some high-performance electric vehicles, the dual-motor drive system uses a high-current, heavy-duty connector with advanced electromagnetic shielding design to prevent electromagnetic interference from affecting PWM signal transmission, ensuring stable and efficient motor operation.
Textile Machinery
Engineered for the most demanding industrial environments, this next-generation power-and-data platform turns high-speed printing presses, smart looms and IIoT networks into one cohesive, ultra-reliable production organism. Its modular, pre-assembled architecture plugs straight into existing lines, slashing integration time and manual wiring costs while extending overall equipment life. Inside, rugged IP68 housings and military-grade EMI shielding keep dust, moisture and electrical noise from ever touching the signal, so every ink jet, servo motor and sensor keeps talking to the cloud without a single lost byte.The fool-proof, color-coded locking connectors make mis-plugging impossible, cutting unplanned downtime by more than half and letting operators focus on throughput instead of troubleshooting.
Our Certificate
REACH
CE
EAC
FAQ
The main body of the shell is made of high-quality zinc alloy, which combines structural strength and basic protection.
The protection level reaches IP68, which can effectively resist dust intrusion and deep water immersion.
The size is 3A, adopting a bottomless design with a side outlet lower shell structure.
The surface is treated with a professional powder ring spraying process, featuring a delicate and uniform texture and enhanced wear resistance and corrosion resistance.
If you are interested in heavy duty connector, feel free to contact us.
